MESSEN BALL VALVES
A ball valve is a quarter turn flow control device mostly used in ON/OFF applications, While the hole of the ball is in line with the flow inlet, it opens and closes when its ball hole is turned 90°, perpendicular of the valve body.
Why Messen Valves?
Our products are highly reliable with top-notch design and production process along effective sealing. Messen’s experienced engineering team is well equipped to cater to the needs of all special requirements of our valuable customers, thus empowering us to be a market leader in special applications of valve requirements.
Major Advantages
- Easy maintenance
- Carefully machined sealing surfaces
- Longer operating life
- Lower maintenance costs
Ball Valve – Floating Design

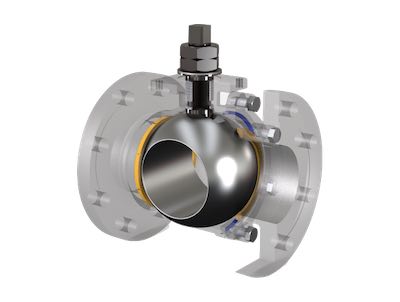

The main feature of Floating ball valve is that there is no structure in the ball to support it. Therefore, it stays suspended in the fluid which forces the ball displaced tightly on to the sealing.
Ball Valve – Trunnion Design

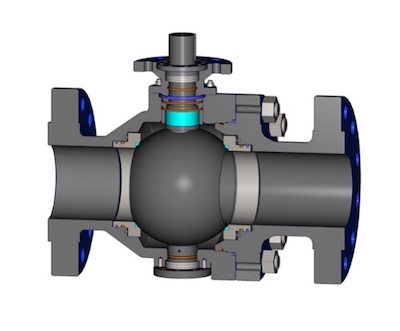

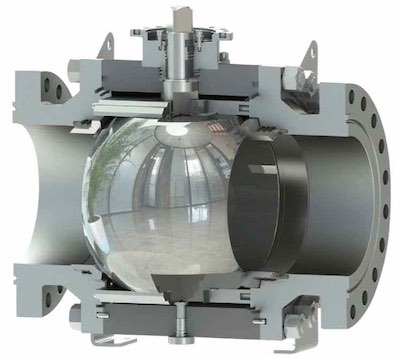

Within a trunnion ball valve, the ball is guided by the bottom stem / pin or plate, and the valve shaft helps to protect the displacement of the ball by the fluid pressure. So the trunnion ball valve needs only low operating torque compared to the floating ball valve. Trunnion design is available with two-piece body and three-piece body.
